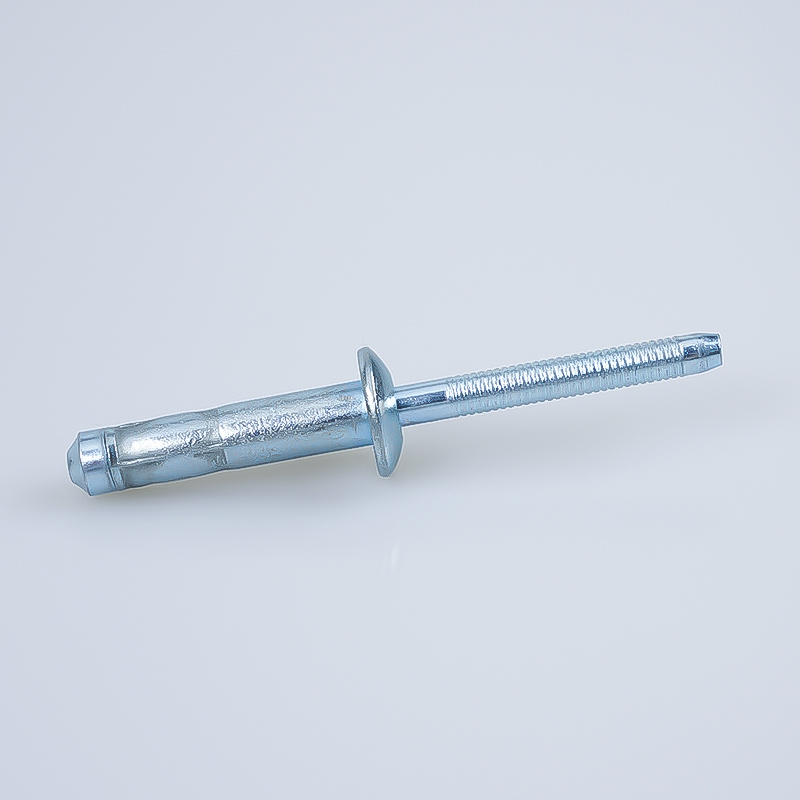

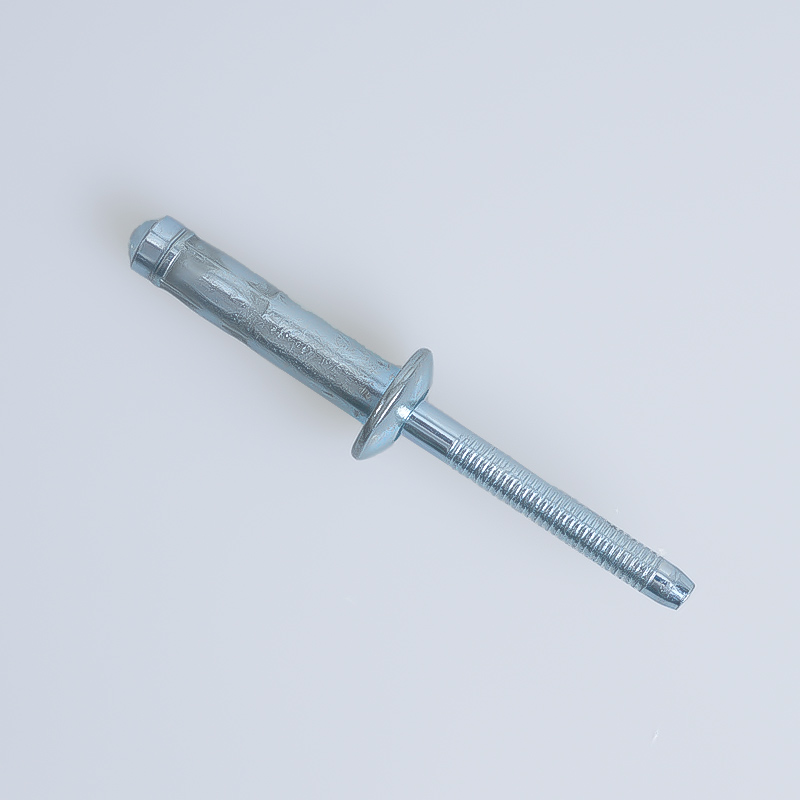

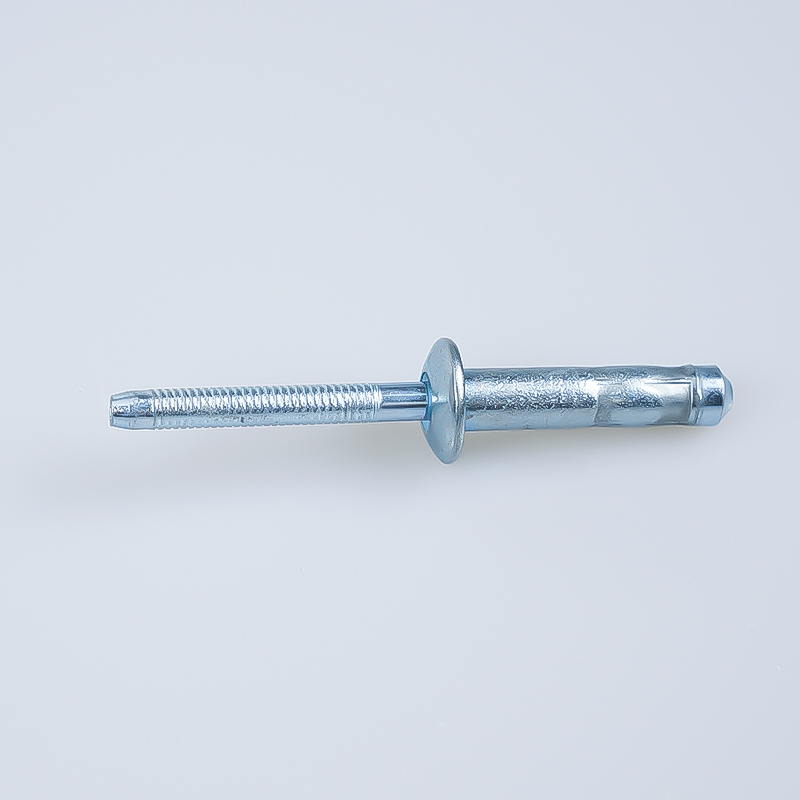

Multi-grip Blind Rivet(Aluminum&Steel)

SIZE : DIA 3.2MM TO 4.8MM LENGTH 7.2MM TO 25.2MM

MATERIAL : BODY:ALUMINUM;MANDREL:CARBON STEEL

FINISH : BODY:POLISHED;MANDREL:ZINC PLATED

PACKAGING : BULK PACK | SMALL BOXED

Description Specification Related Products Form

Description

  • .Multi-grip property adaptable to the scope of width of sheet mate-rial thickness.



  • This serial fastener can replace multiple standard riveting fasten-ers, so the inventory of fasteners is reduced, and the inventory control is simplified .



  • Good hole filling which can provide the solid and vibration resis-tant connection .



  • Be able to provide supplementary riveting for irregular and over tolerance hole, or oval holes.



  • The sheets can be still unmoyed in the non-standard hole.



  • The retained mandrel can avoid damage, electric leakage or ma-rowak sound and other problems caused by falling off of the mandrel.

Specification

D Nom.

Grip Range

L(Max.)

H Nom.

E Rrf.

Drill No.&Hole Size

P Min.

Shear     LBS

Tensile LBS

Inch

mm

Inch

mm

(1/8″) 3.2mm

0.031-0.134

0.8-3.4

0.283

7.2

0.252″  6.4

0.041″  1.05

#30               3.3-3.4

1.06″      27

135     600N

202    900N

0.031-0.187

0.8-4.8

0.331

8.4

0.046-0.25

1.2-6.4

0.39

9.9

0.156-0.312

4.0-7.9

0.453

11.5

0.216-0.375

5.5-9.5

0.516

13.1

0.25-0.437

6.4-11.1

0.61

15.5

(5/32″) 4.0mm

0.02-0.125

0.5-3.2

0.283

7.2

0.312″  7.9

0.051″  1.3

#20               4.1-4.2

1.06″      27

213  950N

337  1500N

0.046-0.25

1.2-6.4

0.39

9.9

0.125-0.312

3.2-7.9

0.453

11.5

0.156-0.375

4.0-9.5

0.516

13.1

0.25-0.437

6.4-11.1

0.61

15.5

0.25-0.5

6.4-12.7

0.681

17.3

(3/16″) 4.8mm

0.062-0.25

1.6-6.4

0.421

10.7

0.386″  9.8

0.061″  1.55

#11               4.9-5.0

1.06″      27

296  1320N

450  2000N

0.079-0.315

2.0-8.0

0.492

12.5

0.125-0.375

3.2-9.5

0.587

14.9

0.187-0.437

4.8-11.1

0.610

15.5

0.25-0.50

6.4-12.7

0.681

17.3

0.354-0.59

9.0-15.0

0.783

19.9

0.5-0.781

12.7-19.8

0.992

25.2
