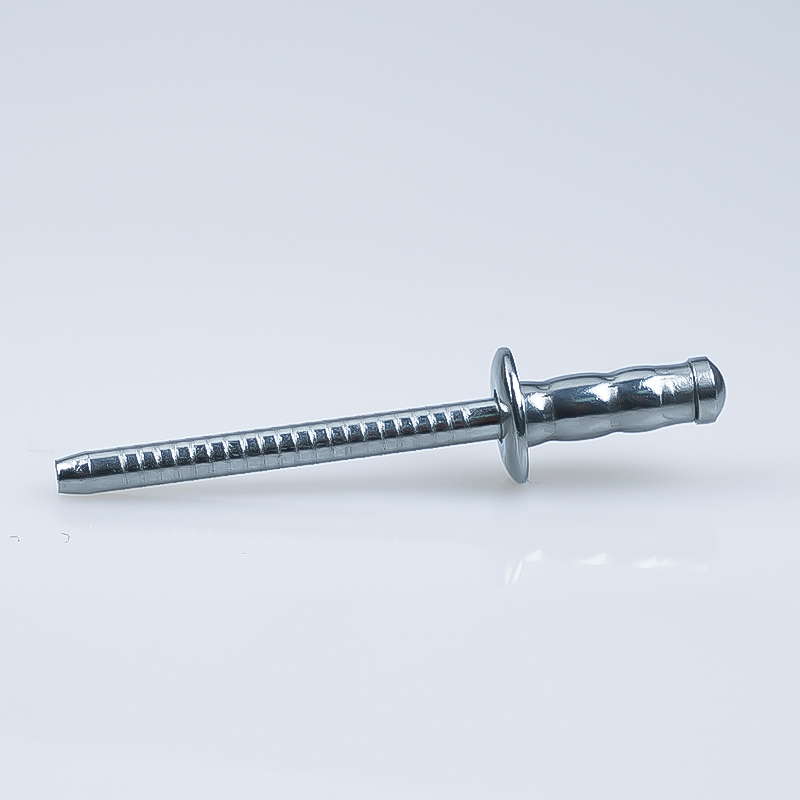

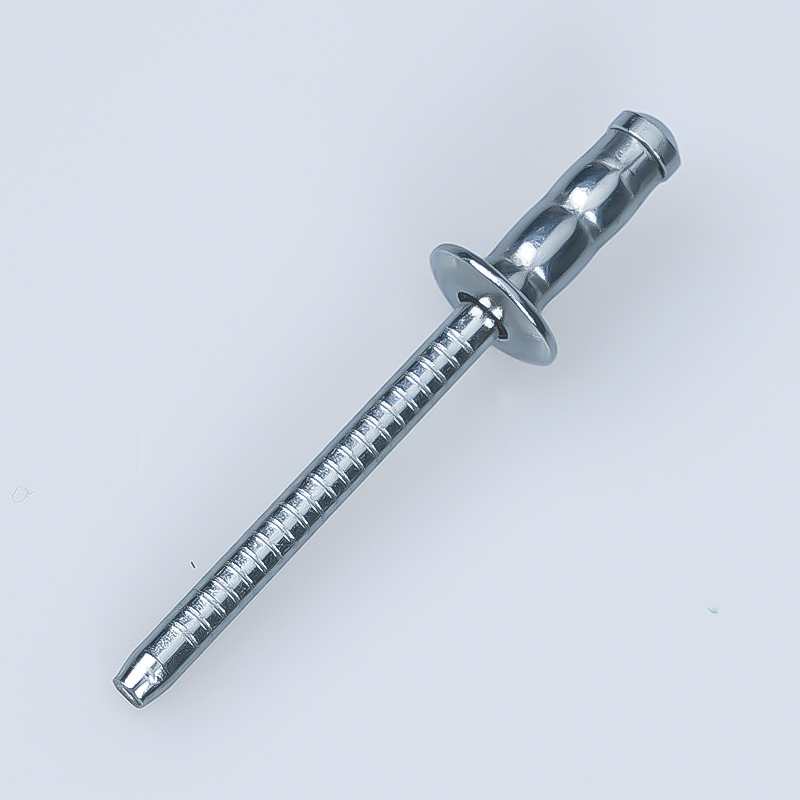

Multi-grip Blind Rivet(All steel)

SIZE : DIA 3.2MM TO 6.4MM LENGTH 8MM TO 30MM

MATERIAL : BODY:CARBON STEEL ;MANDREL:CARBON STEEL

FINISH : ZINC PLATED

PACKAGING : BULK PACK | SMALL BOXED

Description Specification Related Products Form

Description

  • Multi-grip property adaptable to the scope of width of sheet mate-rial thickness.



  • This serial fastener can replace multiple standard riveting fasten-ers, so the inventory of fasteners is reduced, and the inventory control is simplified .



  • Good hole filling which can provide the solid and vibration resis-tant connection .



  • Be able to provide supplementary riveting for irregular and over tolerance hole, or oval holes.



  • The sheets can be still unmoyed in the non-standard hole.



  • The retained mandrel can avoid damage, electric leakage or ma-rowak sound and other problems caused by falling off of the mandrel.

Specification

D

L[+1/-0]

Grip Range

H

E(Max)

Drill

P(Min)

W(Max)

Shear[N](Min)

Tensile[N](Min)

3.2    +0.08      -0.15

8.0

1.0-4.0

6.7

1.3

3.3-3.4

27

2.25

1000

1200

10.0

2.5-6.0

12.0

1.5-8.0

14.0

3.5-9.5

16.0

5.5-11.5

4.0    +0.08      -0.15

8.0

1.0-3.5

8.4

1.7

4.1-4.2

27

2.85

1500

2000

10.0

1.5-5.0

12.0

3.5-7.0

14.0

1.5-9.0

16.0

3.5-11.0

18.0

5.5-12.5

20.0

7.5-14.5

4.8    +0.08      -0.15

10.0

1.5-4.5

10.1

2.0

4.9-5.0

27

3.35

2400

2900

12.0

2.0-6.5

14.0

3.0-8.5

16.0

3.0-10.5

18.0

5.0-12.5

20.0

7.0-14.5

22.0

9.0-16.5

25.0

11.0-19.0

27.0

13.0-21.0

30.0

16.0-24.0

6.4    +0.08      -0.15

12.5

1.0-6.0

13.4

2.7

6.5-6.6

27

4.15

3800

4000

14.5

1.5-7.5

16.5

2.0-9.0

18.5

4.0-11.0

20.5

5.5-12.5

25.5

10.5-17.5
