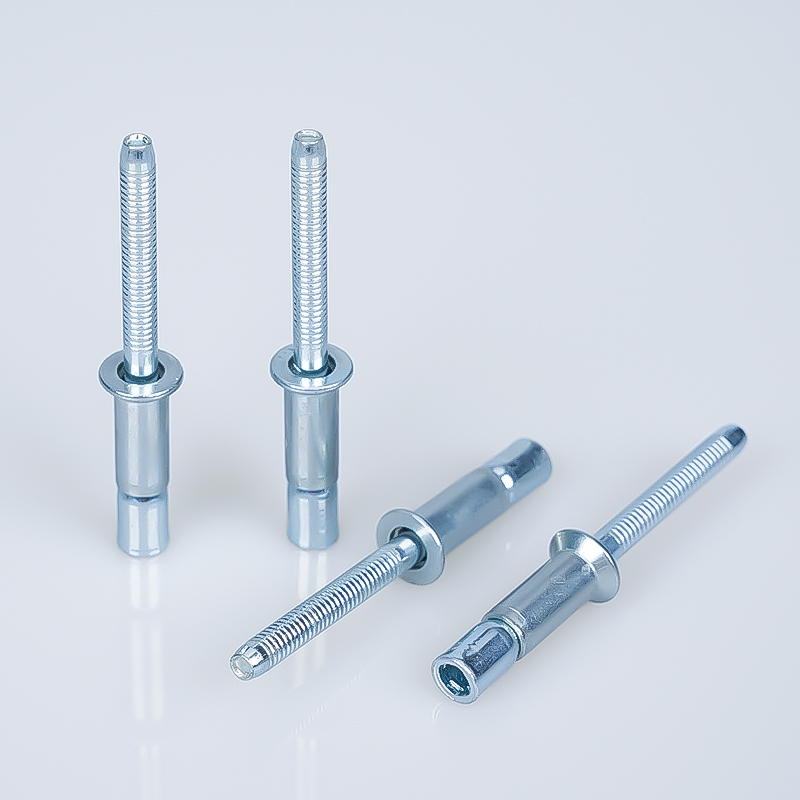

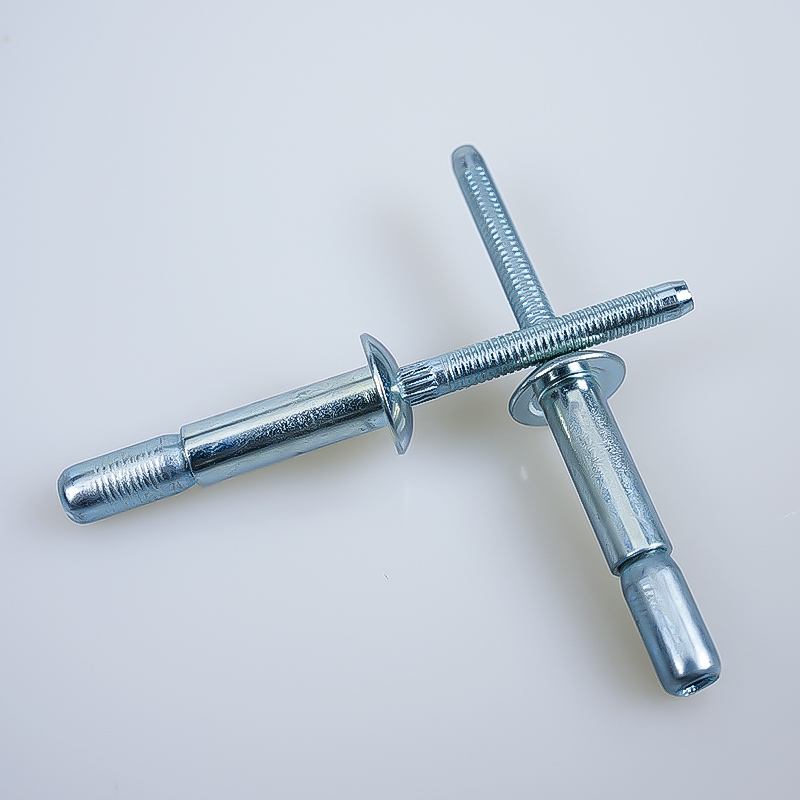

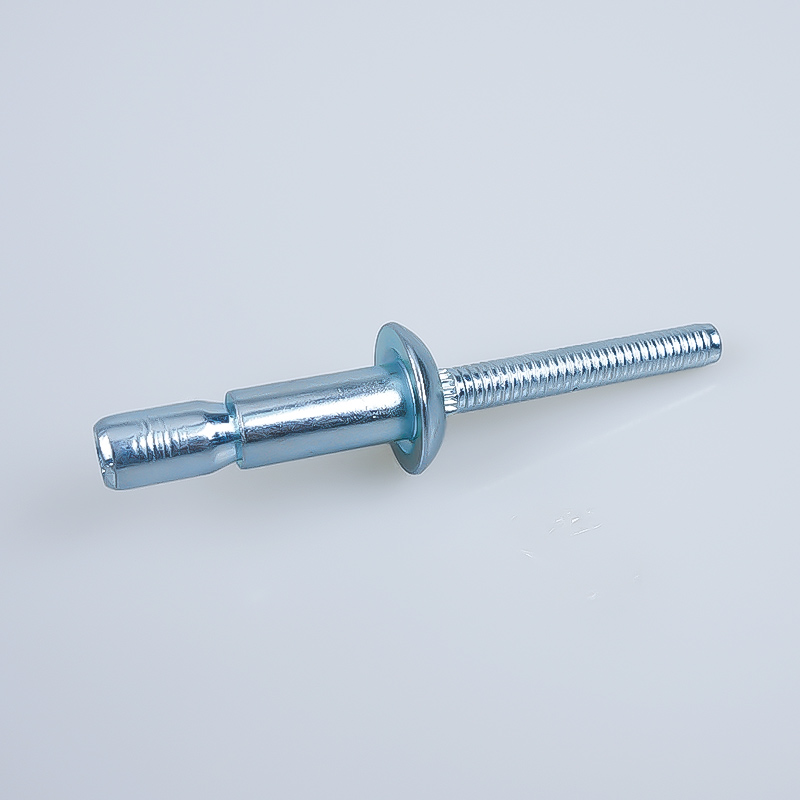

SIZE : DIA 4.8MM TO 6.4MM LENGTH 12MM TO 22MM
MATERIAL : BODY:304&316 STAINLESS STEEL;MANDREL:304&316 STAINLESS STEEL
FINISH : NATURAL POLISH
PACKAGING : BULK PACK | SMALL BOXED
Excelleirs hole filling property and vibration resistant effect are realized by rapidly expanded rivet body, which can provide sup- plementary riveting for the irregular and over tolerance holes, oval or malposition holes.
Good large-gap closing ability and strong clamp force of sheets.
Mechanical mandrel locking mechanism which avoids damage, electric leakage or marowak sound caused by the loosening of mandrel.
Large riveting grip range.
High shear and tensile strength.
Visual external locking system which is convenient for rapidly and simply checking whether the installation is in place.
|
Size |
D |
E(Max) |
F(Max) |
H(Max) |
P(Min) |
W(Max) |
Hole Dia |
Grip Range |
Tensile ref. |
Shear ref. |
Breaking Load(Max) |
Retention Load(Min) |
|
4.8 x 12 |
4.8 |
2.2 |
20.2 |
9 |
27 |
3.1 |
4.9-5.1 |
3.2-8.4 |
5100N |
6400N |
7000N |
445N |
|
4.8 x 16 |
26.5 |
3.2-12.7 |
||||||||||
|
6.4 x 16 |
6.4 |
2.4 |
28.3 |
10.5 |
27 |
4.1 |
6.7-7 |
4.1-12.1 |
9000N |
11000N |
12000N |
1112N |
|
6.4 x 22 |
37.6 |
4.1-17.5 |
