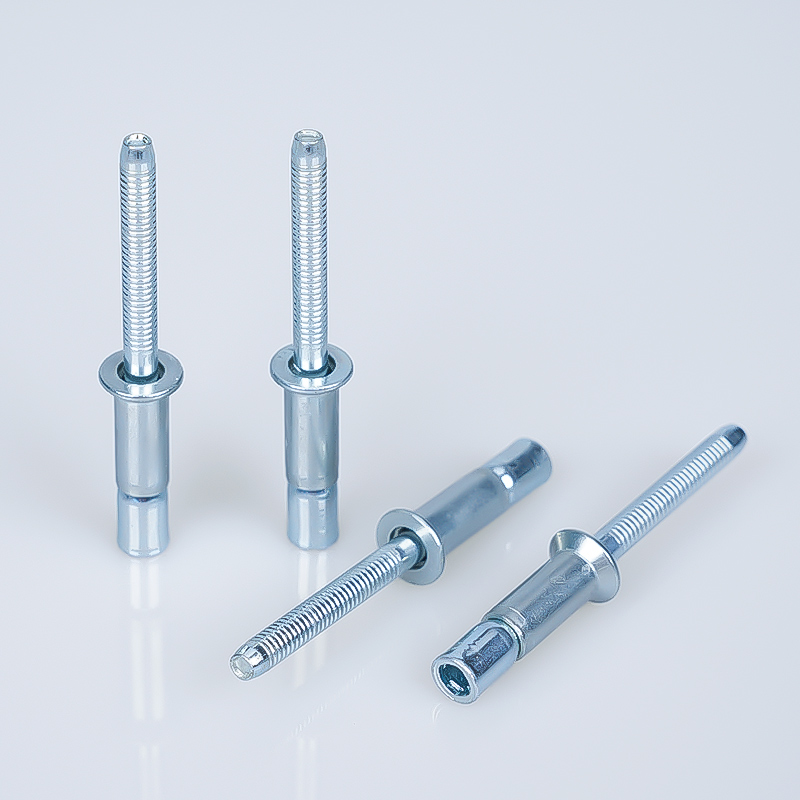

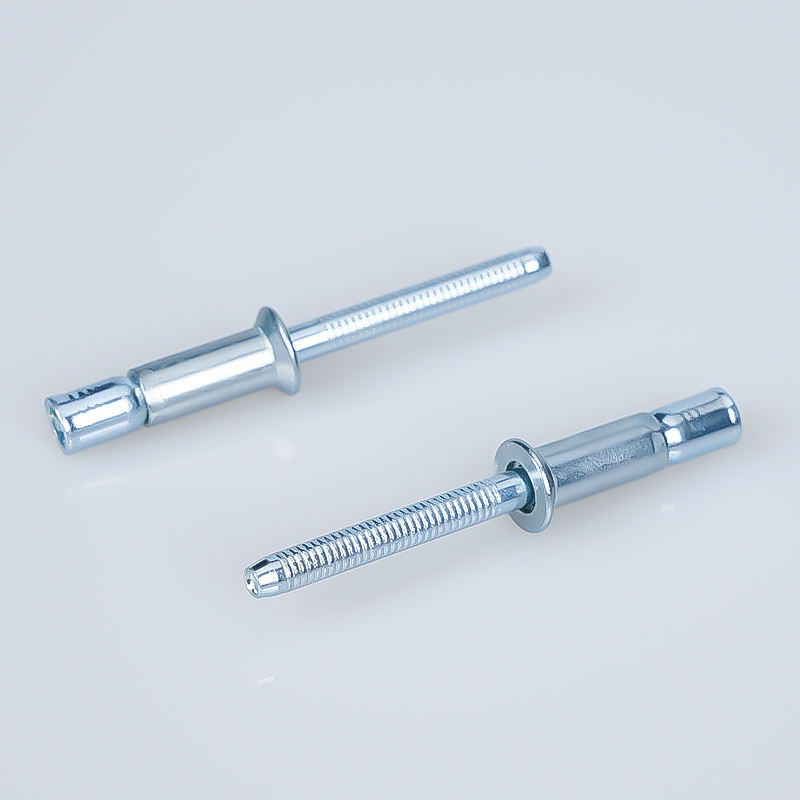

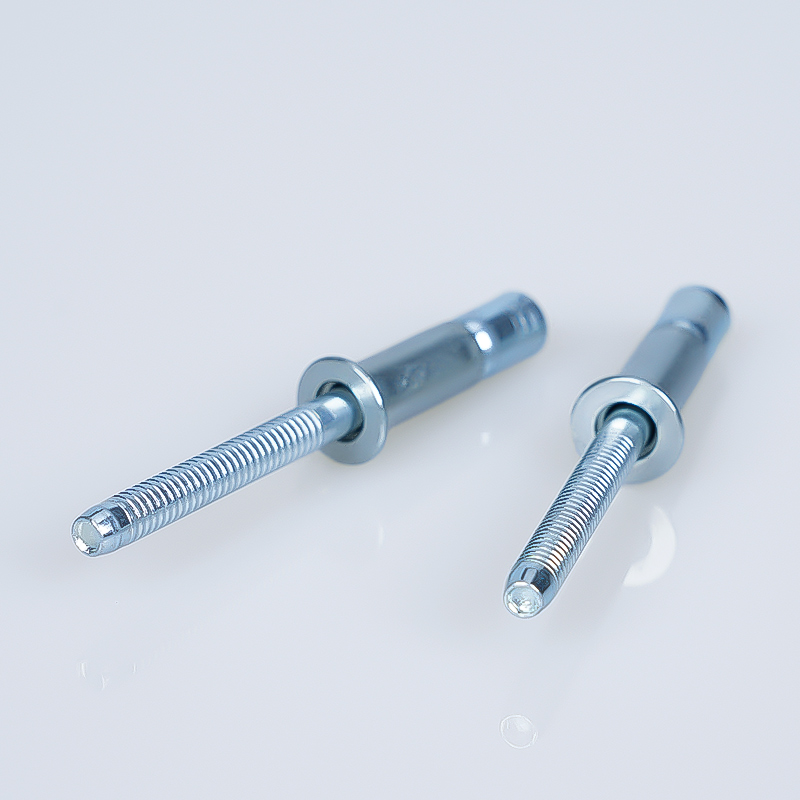

Mono-Lock CSK Head Structural Rivet(Carbon steel)

SIZE : DIA 4.8MM TO 6.4MM LENGTH 10MM TO 19MM

MATERIAL : BODY:CARBON STEEL 10B21;MANDREL:CARBON STEEL SWCH45K

FINISH : ZINC PLATED

PACKAGING : BULK PACK | SMALL BOXED

Description

  • Excelleirs hole filling property and vibration resistant effect are realized by rapidly expanded rivet body, which can provide sup- plementary riveting for the irregular and over tolerance holes, oval or malposition holes.



  • Good large-gap closing ability and strong clamp force of sheets.



  • Mechanical mandrel locking mechanism which avoids damage, electric leakage or marowak sound caused by the loosening of mandrel.



  • Large riveting grip range.



  • High shear and tensile strength.



  • Visual external locking system which is convenient for rapidly and simply checking whether the installation is in place.

Specification

Size

D

E(Max)

F(Max)

H(Max)

P(Min)

W(Max)

Hole Dia

Grip Range

Tensile ref.

Shear ref.

Breaking Load(Max)

Retention Load(Min)

4.8 X 12

4.7-4.88

2.2

20

8.8

27

3.1

4.9-5.1

3.2-8.3

5110N

6440N

7500N

600N

4.8 X16

26.5

3.2-12.2

6.4X16

6.4-6.58

2.4

26.3

10.1

27

4.1

6.7-7.0

3.2-12.1

10450N

11780N

12500N

1100N

6.4X22

34.5

3.2-16.0
