STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 917
SIZE : M4 - M24
MATERIAL : CARBON STEEL
FINISH : SELF COLOUR，ZINC PLATED，CHROME PLATED
PACKAGING : BULK PACK | SMALL BOXED

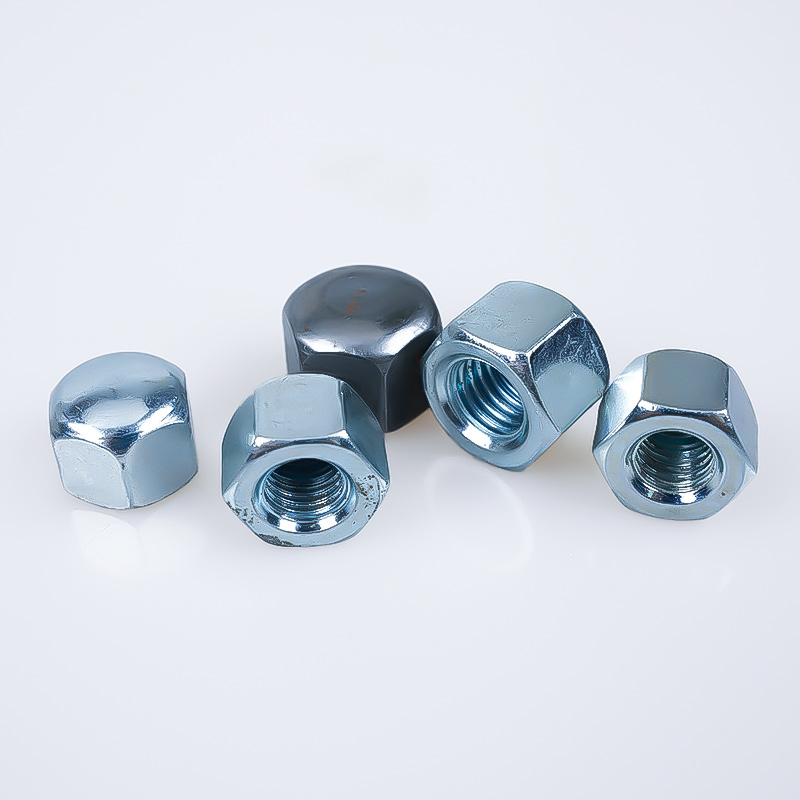

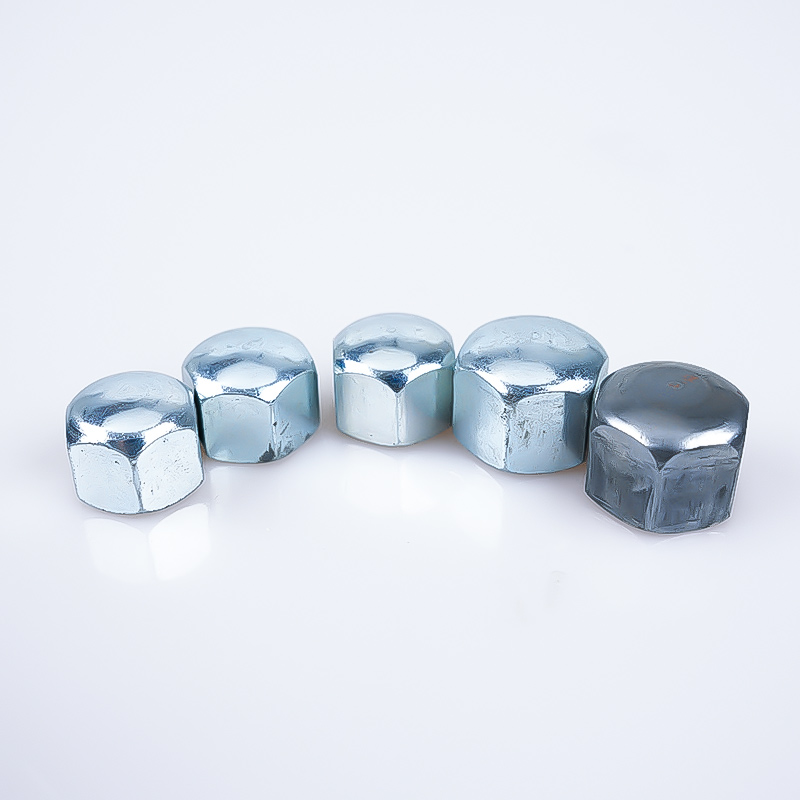

• Hexagon Cap Nuts DIN 917
• Material: Carbon Steel
• Finish: Self Colour | Zinc Plated |Chrome Plated
| Thread Dia | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | ||||
| d | ||||||||||||||
| P | Pitch（fine） | series1 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||
| Pitch（fine） | series2 | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | |||
| series3 | / | / | / | / | 1.25 | 1.25 | / | / | 2 | 1.5 | ||||
| e | Min. | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | |||
| h | Max. | 5.5 | 7 | 9 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |||
| Min. | 5.2 | 6.64 | 8.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | 21.48 | 24.48 | ||||
| s | Max=nominal | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | |||
| Min. | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | ||||
| t | Max. | 4.64 | 5.44 | 7.29 | 9.79 | 11.35 | 13.85 | 15.35 | 17.35 | 19.42 | 21.42 | |||
| Min. | 4.16 | 4.96 | 6.71 | 9.21 | 10.65 | 13.15 | 14.65 | 16.65 | 18.58 | 20.58 | ||||
| x | Max. | series1 | 1.05 | 1.2 | 1.5 | 1.87 | 2.25 | – | – | – | – | – | ||
| series2 | – | – | – | 1.5 | 1.5 | – | – | – | – | – | ||||
| series3 | – | – | – | – | 1.87 | – | – | – | – | – | ||||
| g | Max. | series1 | – | – | – | – | – | 6.4 | 7.3 | 7.3 | 9.3 | 9.3 | ||
| series2 | – | – | – | – | – | 5.6 | 5.6 | 5.6 | 7.3 | 7.3 | ||||
| series3 | – | – | – | – | – | 4.9 | – | – | 5.6 | 5.6 | ||||
| w | Min. | 1 | 1 | 1.5 | 2 | 2 | 2 | 2 | 2 | 2 | 2.5 | |||
| kg/1000 | 1.31 | 2.2 | 4.29 | 9.5 | / | / | / | 48.1 | 70 | 94.1 | ||||
| Thread Dia | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | (M56) | (M64) | (M72) | ||||
| d | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 | ||||
| P | Pitch（fine） | series1 | 1.5 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | ||
| Pitch（fine） | series2 | 2 | / | / | / | / | / | / | / | / | / | |||
| series3 | 37.29 | 39.55 | 45.2 | 50.85 | 60.79 | 72.02 | 82.6 | 93.56 | 104.86 | 116.16 | ||||
| e | Min. | 28 | 30 | 32 | 34 | 44 | 52 | 58 | 68 | 75 | 85 | |||
| h | Max. | 27.48 | 29.48 | 31.38 | 33.38 | 43.38 | 51.26 | 57.26 | 67.26 | 74.26 | 84.13 | |||
| Min. | 34 | 36 | 41 | 46 | 55 | 65 | 75 | 85 | 95 | 105 | ||||
| s | Max=nominal | 33 | 35 | 40 | 45 | 53.8 | 63.1 | 73.1 | 82.8 | 92.8 | 102.8 | |||
| Min. | 22.42 | 24.42 | 26.42 | 28.42 | 36.5 | 42.5 | 48.5 | 56.6 | 62.6 | 67.6 | ||||
| t | Max. | 21.58 | 23.58 | 25.58 | 27.58 | 35.5 | 41.5 | 47.5 | 55.4 | 61.4 | 66.4 | |||
| Min. | – | – | – | – | – | – | – | – | – | – | ||||
| x | Max. | series1 | – | – | – | – | – | – | – | – | – | – | ||
| series2 | – | – | – | – | – | – | – | – | – | – | ||||
| series3 | 9.3 | 10.7 | 10.7 | 12.7 | 14 | 16 | 18.5 | 20 | 21 | 21 | ||||
| g | Max. | series1 | 5.6 | 7.3 | 7.3 | 7.3 | 10.7 | 10.7 | 10.7 | 14 | 14 | 14 | ||
| series2 | 7.3 | – | – | – | – | – | – | – | – | – | ||||
| series3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | ||||
| w | Min. | / | 165 | 229 | 310 | 577 | 958 | 1410 | 2100 | 2840 | 3910 | |||
| kg/1000 | ||||||||||||||
