STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 1587
SIZE : M4 - M20
MATERIAL : STEEL, STAINLESS STEEL, BRASS
GRADE : 6, A2-50, A2-70
FINISH : PLAIN | BZP | BRASS WITH CHROME PLATING
PACKAGING : BULK PACK | SMALL BOXED

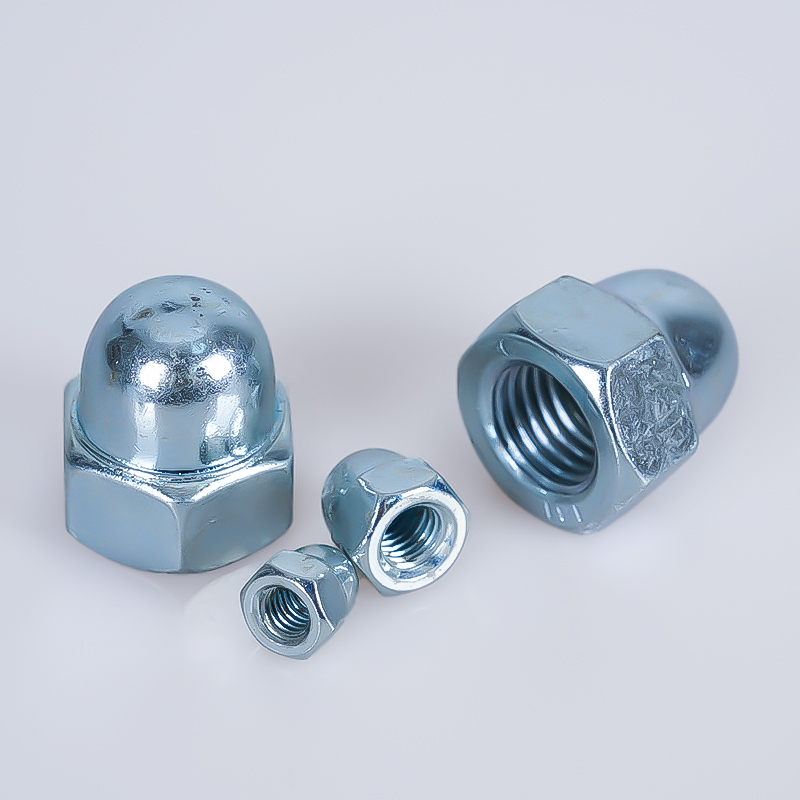

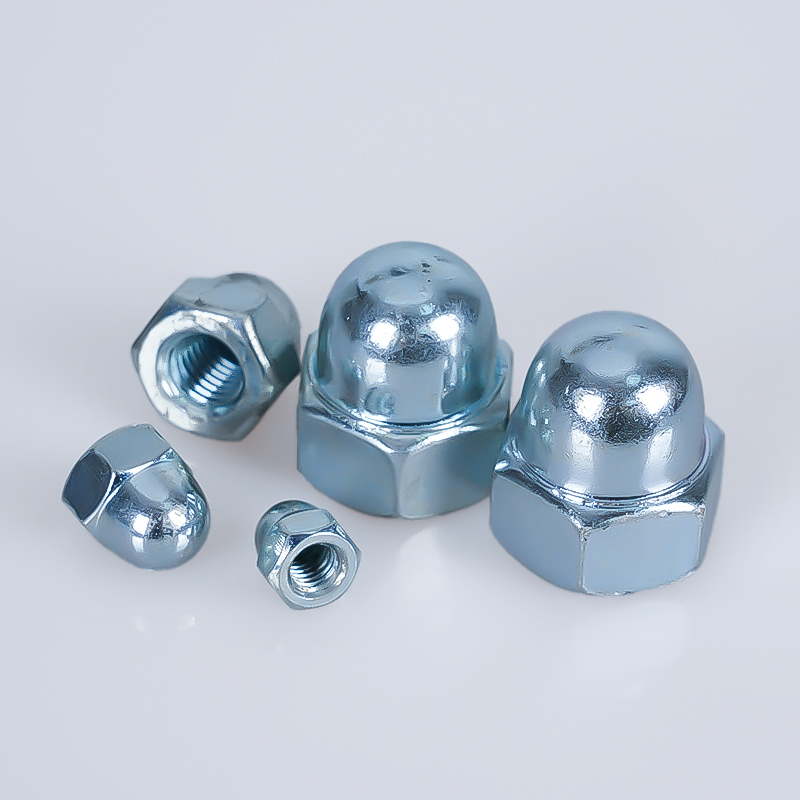

• Hexagon Dome Nuts DIN 1587(Steel).
• Carbon Steel.
• Finish: Self Colour | Zinc Plated Cr3
• Wide range of sizes to suit most applications.
• Bright zinc plated for increased corrosion resistance.
• Dome nuts cover the end of the thread – ideal from an aesthetic point. Also acts as a shield from the end of the thread.
| d 1 | M 5 | M 6 | M 8 | M10 | M12 | M16 |
| h | 10 | 12 | 15 | 18 | 22 | 28 |
| t min. | 7.21 | 7.71 | 10.65 | 12.65 | 15.65 | 20.58 |
| m max. | 4 | 5 | 6.5 | 8 | 10 | 13 |
| s | 8 | 10 | 13 | 17 | 19 | 24 |
| e min. | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 26.75 |
