STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN980V
SIZE : M4 - M24
GRADE : 8,10
MATERIAL : CARBON STEEL
FINISH : SELF COLOUR，ZINC PLATED WITH WAX
PACKAGING : BULK PACK | SMALL BOXED

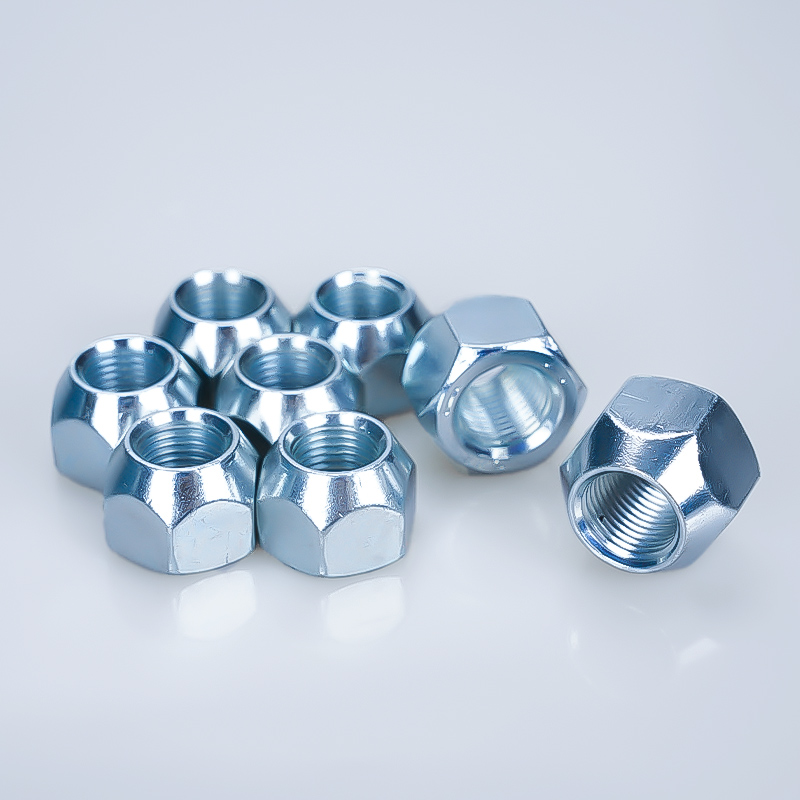

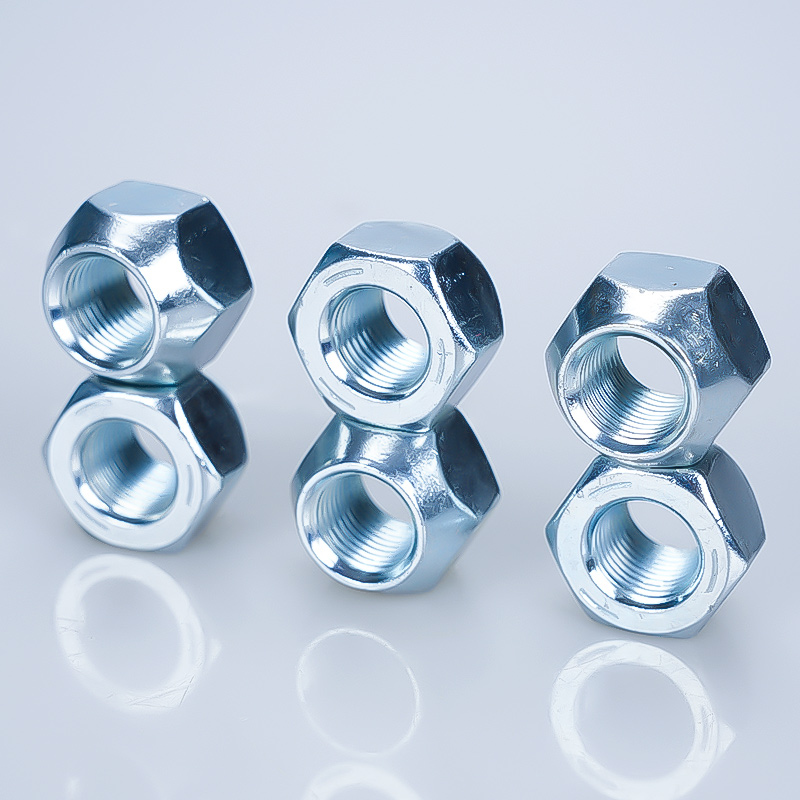

•Hexagon Prevailing Torque Type All Metal Nuts / Stover Locking Nuts DIN 980V
Stover Nuts are an economical hexagon all-metal self-locking nut.
•The self-locking function is produced by having irregularly shaped threads at the top of the nut; these threads grip the corresponding bolt threads, giving a stronger hold
•Ideal for hot environments.
•Conforms to DIN 980V.
•Class 8 Steel.
•Bright Zinc Plate (BZP) finish offers resistance to corrosion.
|
d |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
||
|
P |
corse |
0.5 |
0.7 |
0.8 |
1 |
1 |
1.25 |
1.5 |
|
|
fine 1 |
/ |
/ |
/ |
/ |
/ |
1 |
1 |
||
|
fine 2 |
/ |
/ |
/ |
/ |
/ |
/ |
1.25 |
||
|
da |
min. |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
|
|
max. |
3.45 |
4.6 |
5.75 |
6.75 |
7.75 |
8.75 |
10.8 |
||
|
dw |
min. |
4.6 |
5.9 |
6.9 |
8.9 |
9.6 |
11.6 |
15.6 |
|
|
e |
min. |
6.01 |
7.66 |
8.79 |
11.05 |
12.12 |
14.38 |
18.9 |
|
|
h |
max. |
3.7 |
4.2 |
5.1 |
6 |
7 |
8 |
10 |
|
|
min. |
3.4 |
3.9 |
4.8 |
5.7 |
6.5 |
7.5 |
9 |
||
|
mw |
min. |
1.65 |
2.2 |
2.75 |
3.3 |
3.85 |
4.4 |
5.5 |
|
|
s |
max. |
5.5 |
7 |
8 |
10 |
11 |
13 |
17 |
|
|
min. |
5.32 |
6.78 |
7.78 |
9.78 |
10.73 |
12.73 |
16.73 |
||
|
d |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
||
|
P |
corse |
1.75 |
2 |
2 |
2.5 |
2.5 |
2.5 |
3 |
|
|
fine 1 |
1.5 |
1.5 |
1.5 |
2 |
3.5 |
2 |
2 |
||
|
fine 2 |
1.25 |
/ |
/ |
1.5 |
4.5 |
1.5 |
/ |
||
|
da |
min. |
12 |
14 |
16 |
18 |
5.5 |
22 |
24 |
|
|
max. |
13 |
15.1 |
17.3 |
19.5 |
6.5 |
23.7 |
25.9 |
||
|
dw |
min. |
17.4 |
20.5 |
22.5 |
24.9 |
7.5 |
29.5 |
33.2 |
|
|
e |
min. |
21.1 |
24.49 |
26.75 |
29.56 |
8.5 |
35.03 |
39.55 |
|
|
h |
max. |
12 |
14 |
16 |
18 |
9.5 |
22 |
24 |
|
|
min. |
11 |
12 |
14 |
16 |
10.5 |
20 |
22 |
||
|
mw |
min. |
6.6 |
7.7 |
8.8 |
9.9 |
11.5 |
12.2 |
13.2 |
|
|
s |
max. |
19 |
22 |
24 |
27 |
12.5 |
32 |
36 |
|
|
min. |
18.67 |
21.67 |
23.67 |
26.16 |
13.5 |
31 |
35 |
||
