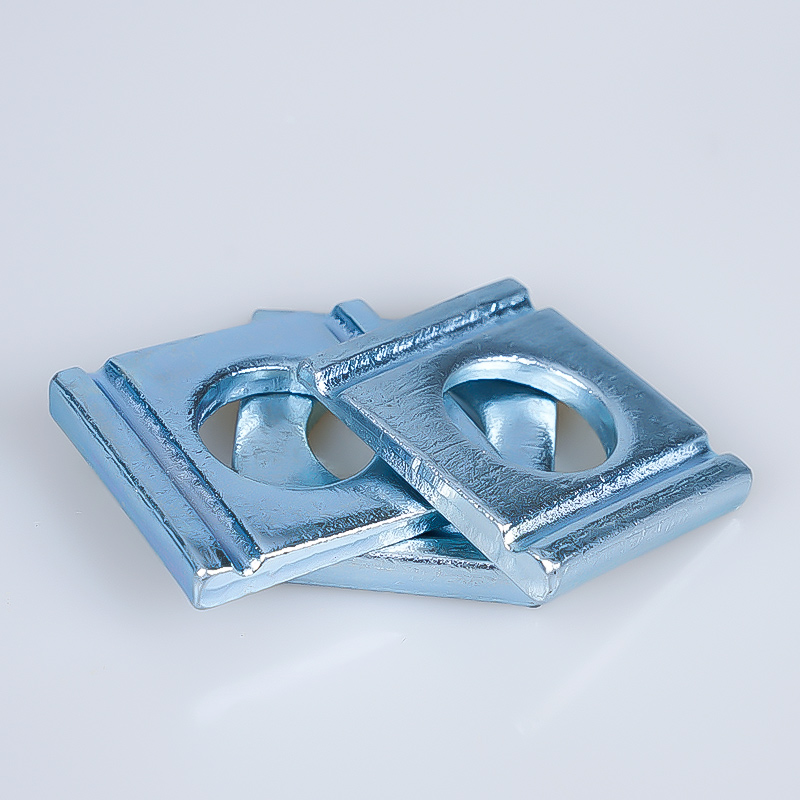

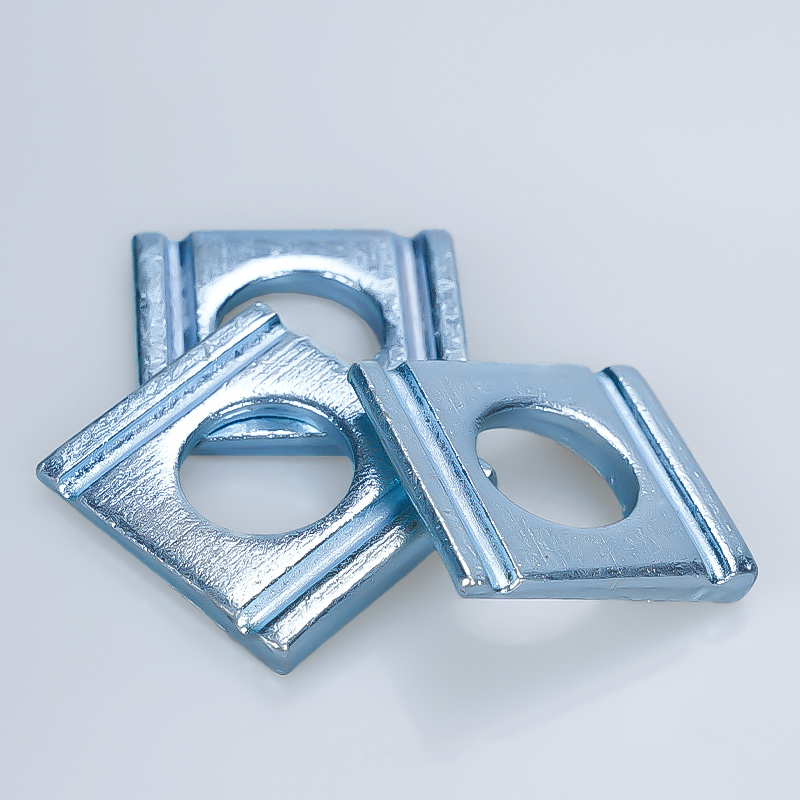

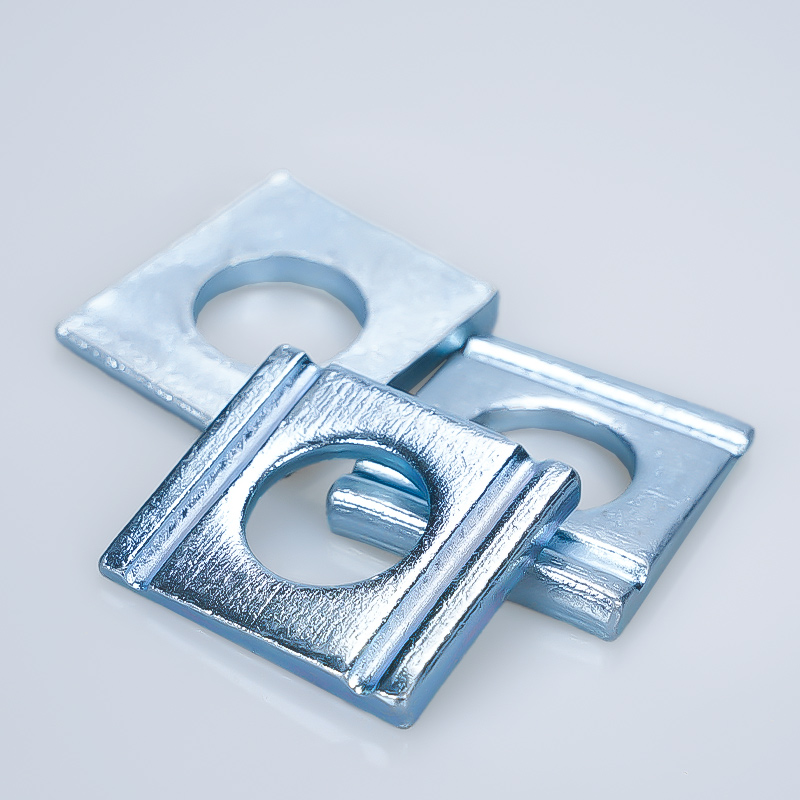

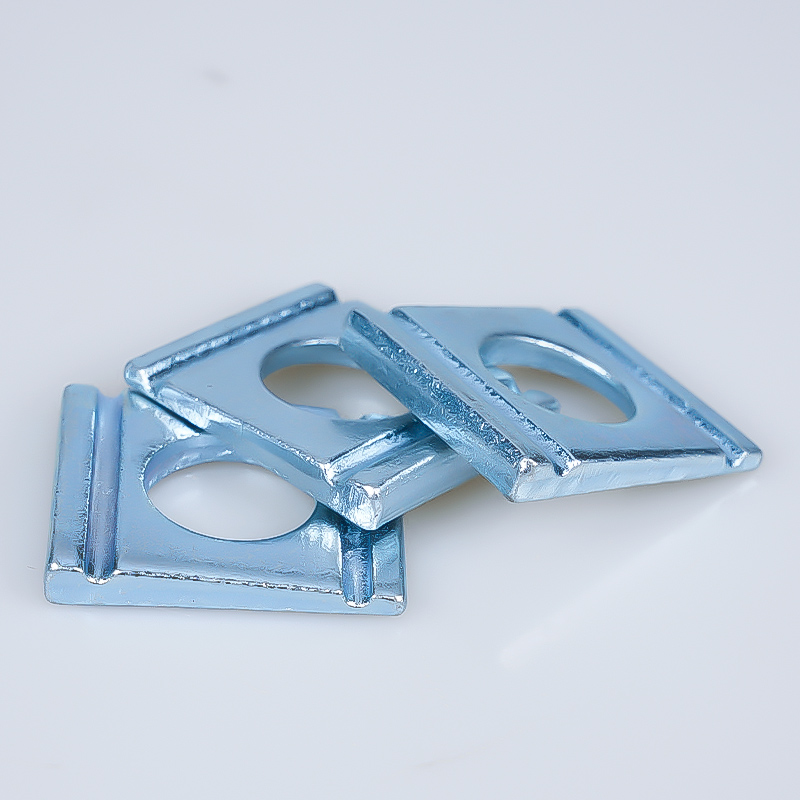

Square Taper Washer DIN 434

STANDARD : DIN 434

SIZE : M2.5 TO M100

MATERIAL : CARBON STEEL

FINISH : ZINC PLATED

PACKAGING : BULK PACK | SMALL BOXED

Description

• Used with threaded fasteners (for example a bolt and a nut)



• Designed to increase the load distribution

Specification

applicab thread

M8

M10

M12

M16

M20

M22

M24

M27

d

min=nominal

9

11

13.5

17.5

22

24

26

30

max.

9.36

11.43

13.93

17.93

22.52

24.52

26.52

30.52

a

nominal

22

22

26

32

40

44

56

56

min.

20

20

24

29.5

37.5

41.5

53

53

max.

24

24

28

34.5

42.5

46.5

59

59

b

nominal

22

22

30

36

44

50

56

56

min.

21.35

21.35

29.35

35.2

43.2

49.2

55.05

55.05

max.

22.65

22.65

30.65

36.8

44.8

50.8

56.95

56.95

e

Ref.

2.9

2.9

3.7

4.45

5.25

6

6.26

6.26

h

nominal

3.8

3.8

4.9

5.9

7

8

8.5

8.5

min.

3.2

3.2

3.9

4.9

6

7

7.3

7.3

max.

4.4

4.4

5.9

6.9

8

9

9.7

9.7

r

1.6

1.6

2

2.4

2.8

3.2

3.2

3.2

t

0.5

0.5

0.7

0.8

0.9

1

1

1

kg

9.57

8.85

18.2

31.4

56.9

82.3

128

119
