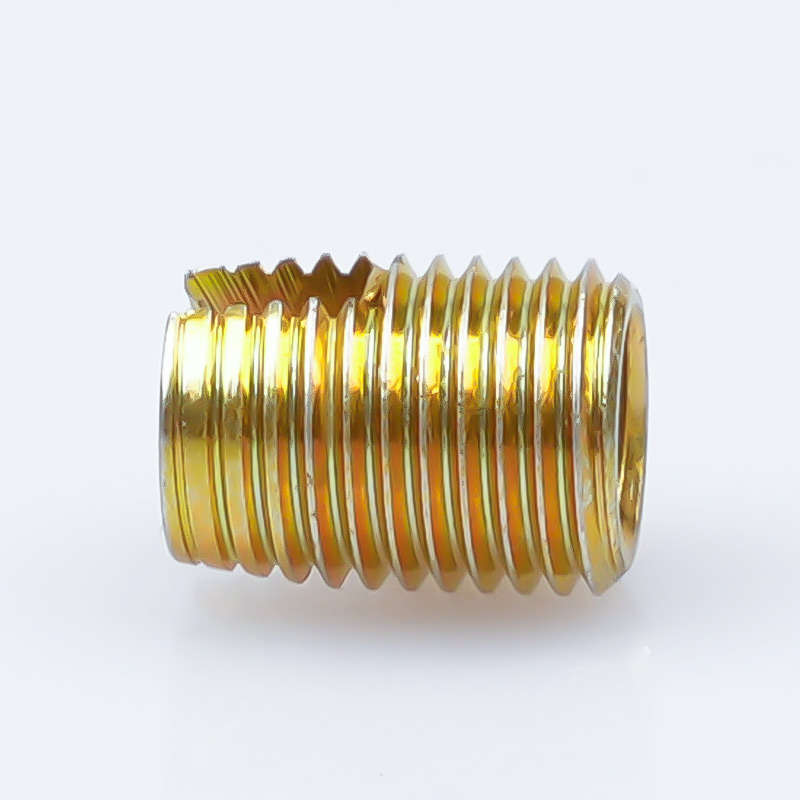

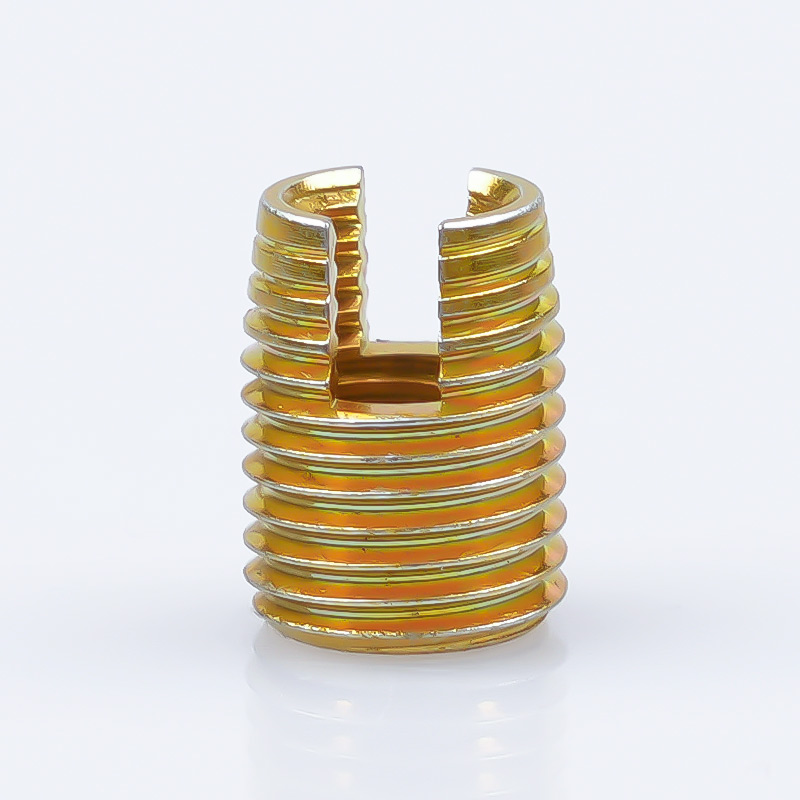

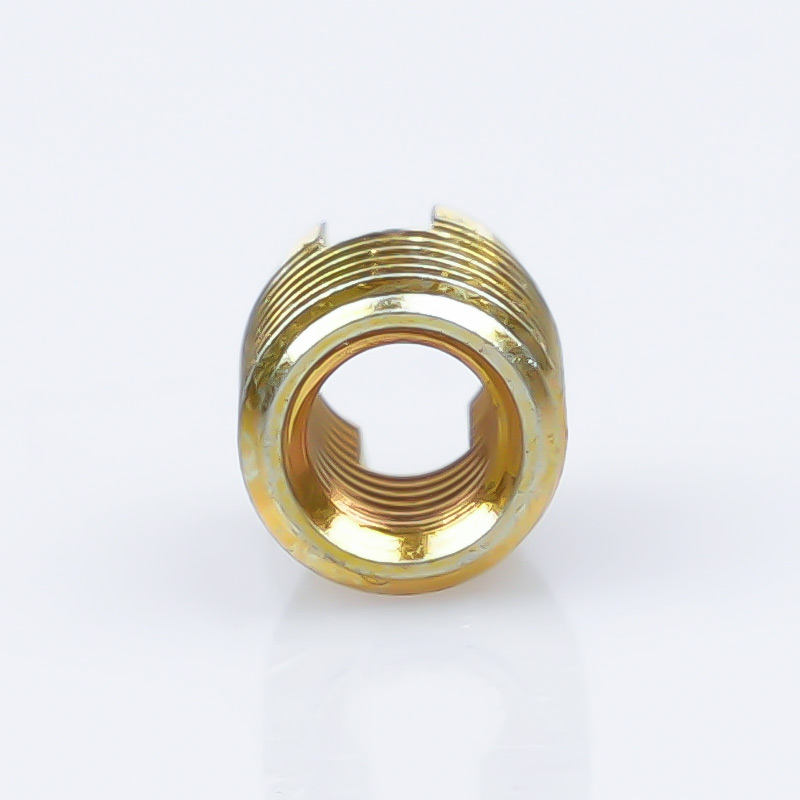

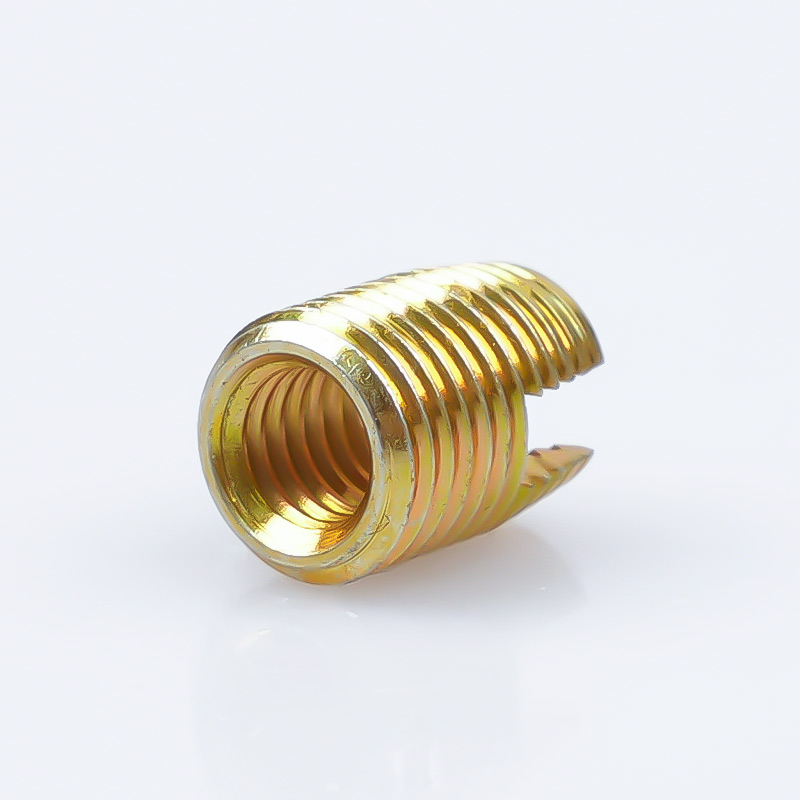

Self Tapping Inserts Hardened Steel

Home-Products

Products

Hexagon Head Set Screws DIN 933

STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
Metric Type T Nylon Insert Nuts DIN 985

STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
Metric Hexagon Full Nuts DIN 934

STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

Size : M3~M20

Finish : Yellow Zinc Plating

Description Specification Related Products Form

For use in low shear strength, harder materials.
Suitable for use in cast iron, brass, bronze, ferrous, non-ferrous and light metal alloys.
Fine external thread reduces installation torque.
Tapered nose aids insertion into the receiving bore hole.
The wide cutting slot allows the insert to cut their own thread as they are driven into the base material.
Suitable for a quick repair of worn, damaged or stripped threads
Ideal for thread reinforcement in weaker materials where mating fasteners may be screwed in frequently.
Simple to install using a drive tool, vertical drill or tapping attachment.
Sizes given are internal metric coarse thread size x length of insert.
Recommended pilot hole sizes are shown in the information section for each product.
Use a smaller hole for softer materials and larger hole for harder materials.
Case hardened steel with yellow zinc plating.
This pattern of insert is often referred to as type ES or 302.
