STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 6797J
SIZE : M2.5 TO M30
MATERIAL : SPRING STEEL
FINISH : BLACK OXIDE, ZINC PLATED
PACKAGING : BULK PACK | SMALL BOXED

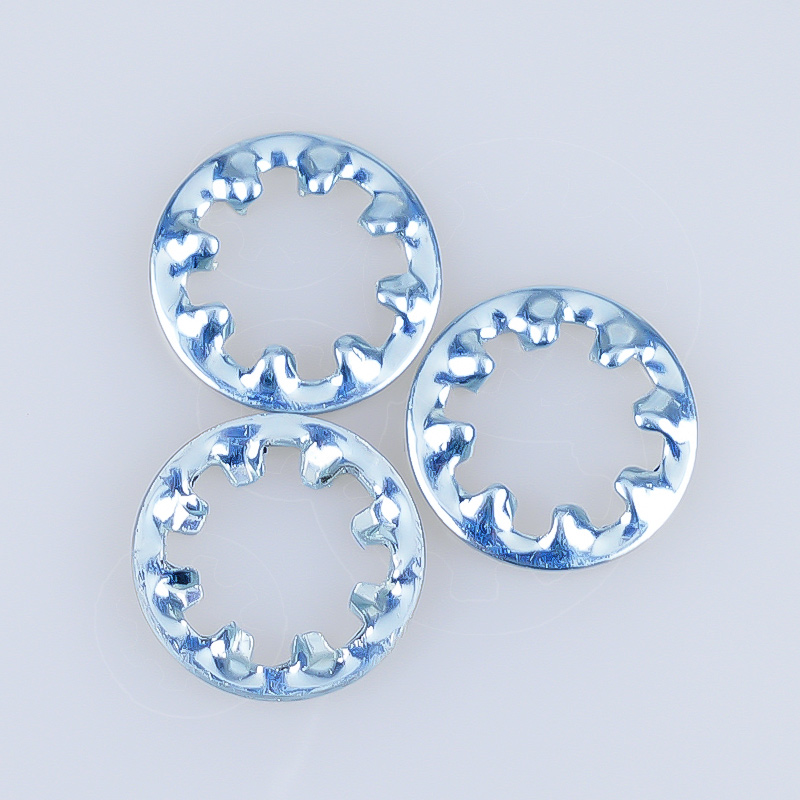

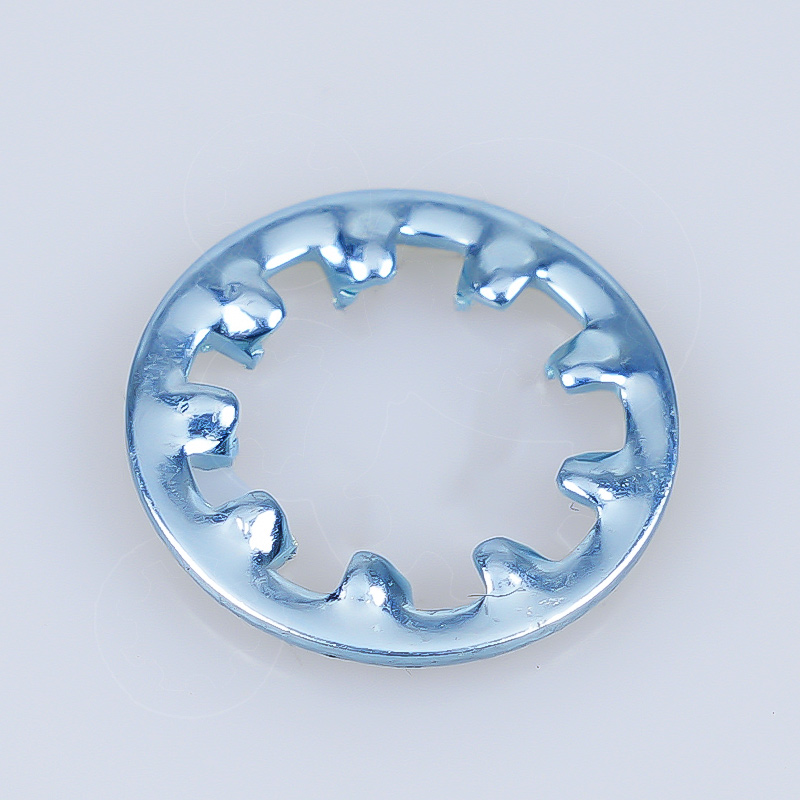

The teeth bite into the surfaces as the component parts are tightened.
•Helps to combat vibration.
•Conforms to DIN 6797J
•Galvanised finish offers great resistance to corrosion.
|
Size |
2.2 |
2.7 |
3.2 |
3.7 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
||
|
d |
Min.=nominal |
|
2.2 |
2.7 |
3.2 |
3.7 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
|
Max. |
|
2.34 |
2.84 |
3.38 |
3.88 |
4.48 |
5.48 |
6.62 |
7.62 |
8.62 |
10.77 |
|
|
dc |
Max.=nominal |
|
4.5 |
5.5 |
6 |
7 |
8 |
10 |
11 |
12.5 |
15 |
18 |
|
Min. |
|
4.2 |
5.2 |
5.7 |
6.64 |
7.64 |
9.64 |
10.57 |
12.07 |
14.57 |
17.57 |
|
|
t |
0.3 |
0.4 |
0.4 |
0.5 |
0.5 |
0.6 |
0.7 |
0.8 |
0.8 |
0.9 |
||
|
tooth |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
8 |
9 |
||
|
kg/1000 |
0.04 |
0.045 |
0.045 |
0.085 |
0.1 |
0.2 |
0.25 |
0.35 |
0.55 |
0.9 |
||
|
Fit for thread dia |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
||
|
Size |
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
|
||
|
d |
Min=nominal |
|
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
|
|
Max. |
|
13.27 |
15.27 |
17.27 |
19.33 |
21.33 |
23.33 |
25.33 |
28.33 |
31.39 |
|
|
|
dc |
Max.=nominal |
|
20.5 |
24 |
26 |
30 |
33 |
36 |
38 |
44 |
48 |
|
|
Min |
|
19.98 |
23.48 |
25.48 |
29.48 |
32.38 |
35.38 |
37.38 |
43.38 |
47.38 |
|
|
|
t |
1 |
1 |
1.2 |
1.4 |
1.4 |
1.5 |
1.5 |
1.6 |
1.6 |
|
||
|
tooth |
10 |
10 |
12 |
12 |
12 |
14 |
14 |
14 |
14 |
|
||
|
kg/1000 |
1.2 |
1.9 |
2.4 |
3.7 |
4.1 |
6 |
6.5 |
8.5 |
9.5 |
|
||
|
Fit for thread dia |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
|
||
