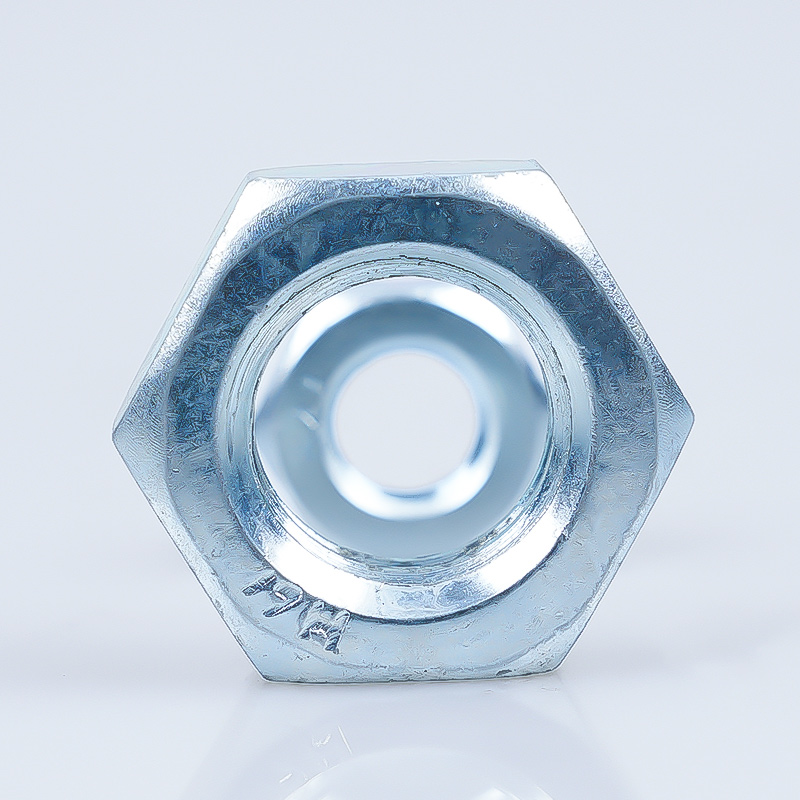

STANDARD : DIN 439B
SIZE : M1.6 TO M52
MATERIAL : STAINLESS STEEL
FINISH : PLAIN
PACKAGING : BULK PACK | SMALL BOXED

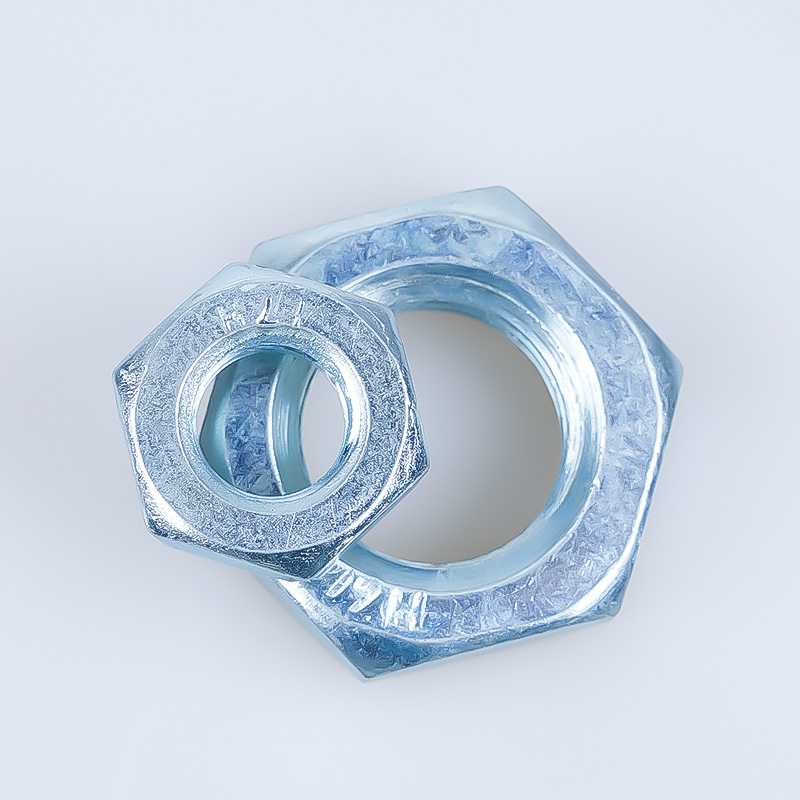

Material: Stainless Steel
Finish: Plain
Lock nuts are applied to a matching male thread (examples include bolts, set screws and machine screws)
Hexagon fits corresponding sockets and spanners.
Conforms to DIN 439.
|

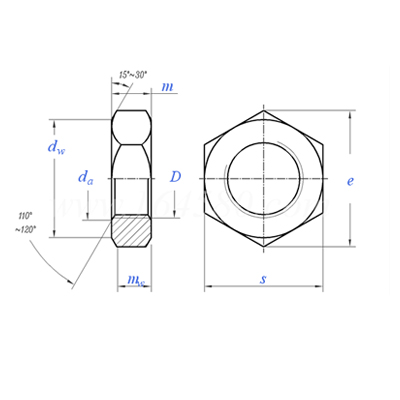

Thread size |
M1.6 |
M1.8 |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
||
|
P |
Coarse Thread |
0.35 |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
|
|
Fine Thread 1 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
1 |
1 |
1.5 |
1.5 |
1.5 |
||
|
Fine Thread 2 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
1.25 |
1.25 |
/ |
/ |
||
|
Fine Thread 3 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
||
|
da |
Min. |
1.6 |
1.8 |
2 |
2.5 |
3 |
3.5 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
|
Max. |
1.84 |
2.06 |
2.3 |
2.9 |
3.45 |
4 |
4.6 |
5.75 |
6.75 |
8.75 |
10.8 |
13 |
15.1 |
17.3 |
||
|
dw |
Min. |
2.4 |
2.7 |
3.1 |
4.1 |
4.6 |
5.1 |
5.9 |
6.9 |
8.9 |
11.6 |
15.6 |
17.4 |
20.5 |
22.5 |
|
|
e |
Min. |
3.48 |
3.82 |
4.32 |
5.45 |
6.01 |
6.58 |
7.66 |
8.79 |
11.05 |
14.38 |
18.9 |
21.1 |
24.49 |
26.75 |
|
|
m |
Max. |
1 |
1.1 |
1.2 |
1.6 |
1.8 |
2 |
2.2 |
2.7 |
3.2 |
4 |
5 |
6 |
7 |
8 |
|
|
Min. |
0.75 |
0.85 |
0.95 |
1.35 |
1.55 |
1.75 |
1.95 |
2.45 |
2.9 |
3.7 |
4.7 |
5.7 |
6.42 |
7.42 |
||
|
mw |
Min. |
0.6 |
0.68 |
0.76 |
1.08 |
1.24 |
1.4 |
1.56 |
1.96 |
2.32 |
2.96 |
3.76 |
4.56 |
5.14 |
5.94 |
|
|
s |
Max. |
3.2 |
3.5 |
4 |
5 |
5.5 |
6 |
7 |
8 |
10 |
13 |
17 |
19 |
22 |
24 |
|
|
Min. |
3.08 |
3.38 |
3.82 |
4.82 |
5.32 |
5.82 |
6.78 |
7.78 |
9.78 |
12.73 |
16.73 |
18.67 |
21.67 |
23.67 |
||
|
Weight/1000≈kg |
0.06 |
0.08 |
0.11 |
0.22 |
0.29 |
0.37 |
0.57 |
0.83 |
1.6 |
3.2 |
7.2 |
10.4 |
15.9 |
20.5 |
||
|
Thread size |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
M52 |
||
|
P |
Coarse Thread |
2.5 |
2.5 |
2.5 |
3 |
3 |
3.5 |
3.5 |
4 |
4 |
4.5 |
4.5 |
5 |
5 |
|
|
Fine Thread 1 |
1.5 |
2 |
1.5 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
3 |
3 |
||
|
Fine Thread 2 |
2 |
1.5 |
2 |
1.5 |
/ |
/ |
/ |
2 |
2 |
2 |
2 |
2 |
2 |
||
|
Fine Thread 3 |
/ |
/ |
/ |
/ |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
||
|
da |
Min. |
18 |
20 |
22 |
24 |
27 |
30 |
33 |
36 |
39 |
42 |
45 |
48 |
52 |
|
|
Max. |
19.5 |
21.6 |
23.8 |
25.9 |
29.2 |
32.4 |
35.6 |
38.9 |
42.1 |
45.4 |
48.6 |
51.8 |
56.2 |
||
|
dw |
Min. |
24.9 |
27.7 |
29.5 |
33.2 |
38 |
42.7 |
46.6 |
51.1 |
55.9 |
60 |
64.7 |
69.4 |
74.2 |
|
|
e |
Min. |
29.56 |
32.95 |
35.03 |
39.55 |
45.2 |
50.85 |
55.37 |
60.79 |
66.44 |
71.3 |
76.95 |
82.6 |
88.25 |
|
|
m |
Max. |
9 |
10 |
11 |
12 |
13.5 |
15 |
16.5 |
18 |
19.5 |
21 |
22.5 |
24 |
26 |
|
|
Min. |
8.42 |
9.1 |
9.9 |
10.9 |
12.4 |
13.9 |
15.4 |
16.9 |
18.2 |
19.7 |
21.2 |
22.7 |
24.7 |
||
|
mw |
Min. |
6.74 |
7.28 |
7.92 |
8.72 |
9.9 |
11.1 |
12.3 |
13.5 |
14.6 |
15.8 |
17 |
18.2 |
19.8 |
|
|
s |
Max. |
27 |
30 |
32 |
36 |
41 |
46 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
Min. |
26.16 |
29.16 |
31 |
35 |
40 |
45 |
49 |
53.8 |
58.8 |
63.1 |
68.1 |
73.1 |
78.1 |
||
|
Weight/1000≈kg |
29.6 |
40.2 |
48.3 |
69.5 |
101 |
139 |
183 |
244 |
316 |
403 |
500 |
617 |
755 |
||
