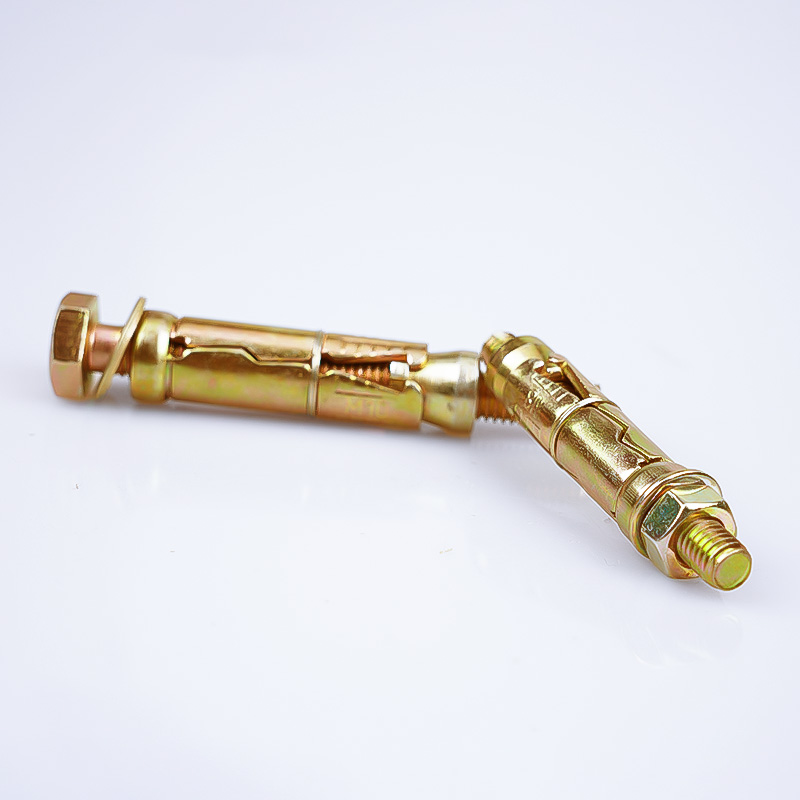

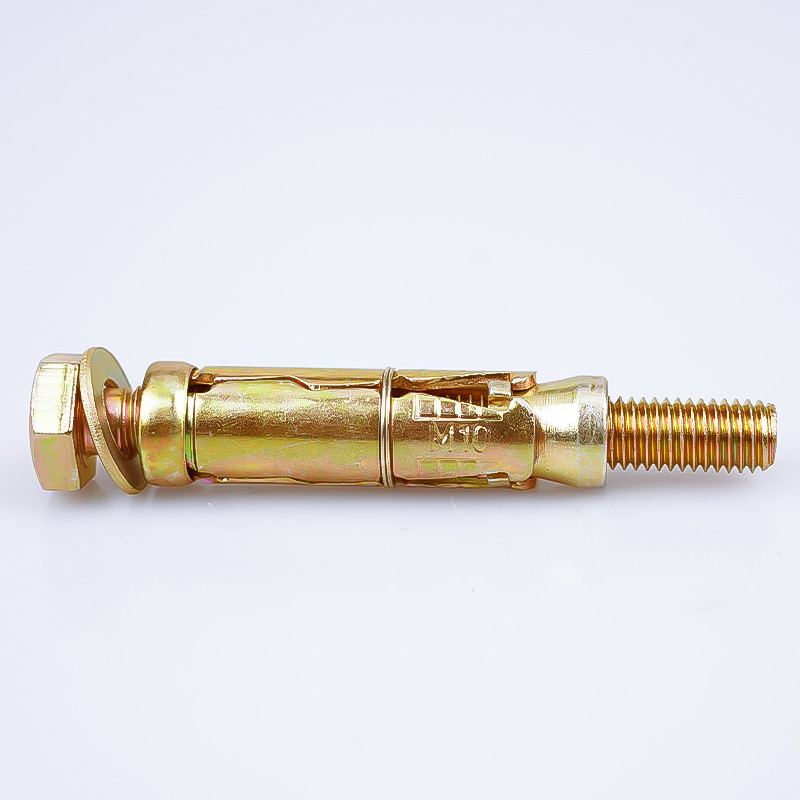

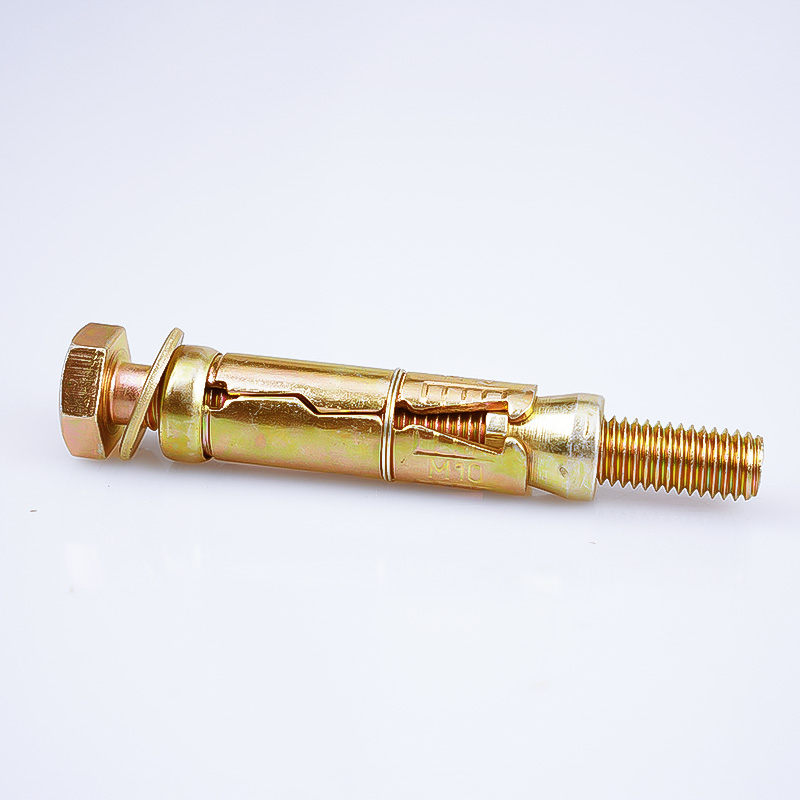

Loose Bolt Shield Anchor

Size : M6-M16

Finish : ZINC & CLEAR CR3+

Description Specification Related Products Form

Description

The perfect anchor for use in: Concrete • Concrete Blocks • Solid Brick • Stone



Diameter Length Anchor Hole Size Shield Length Thread Diameter Fastens up to Bolt Length Min Hole Depth
M6 10 12 45 6 10 55 50
M6 25 12 45 6 25 70 50
M6 40 12 45 6 40 85 50
M8 10 14 50 8 10 65 55
M8 25 14 50 8 25 80 55
M8 40 14 50 8 40 95 55
M10 10 16 60 10 10 75 65
M10 25 16 60 10 25 90 65
M10 50 16 60 10 50 115 65
M10 75 16 60 10 75 140 65
M12 10 20 75 12 10 90 85
M12 25 20 75 12 25 105 85
M12 40 20 75 12 40 120 85
M12 60 20 75 12 60 140 85
M16 15 25 115 16 15 135 125
M16 30 25 115 16 30 150 125
M16 60 25 115 16 60 180 125
