STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

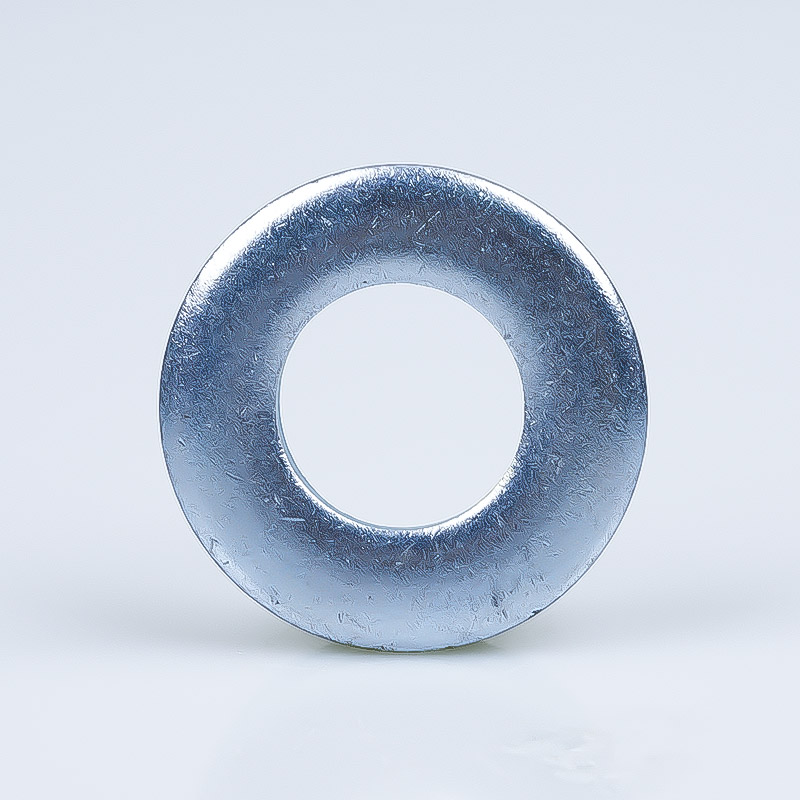

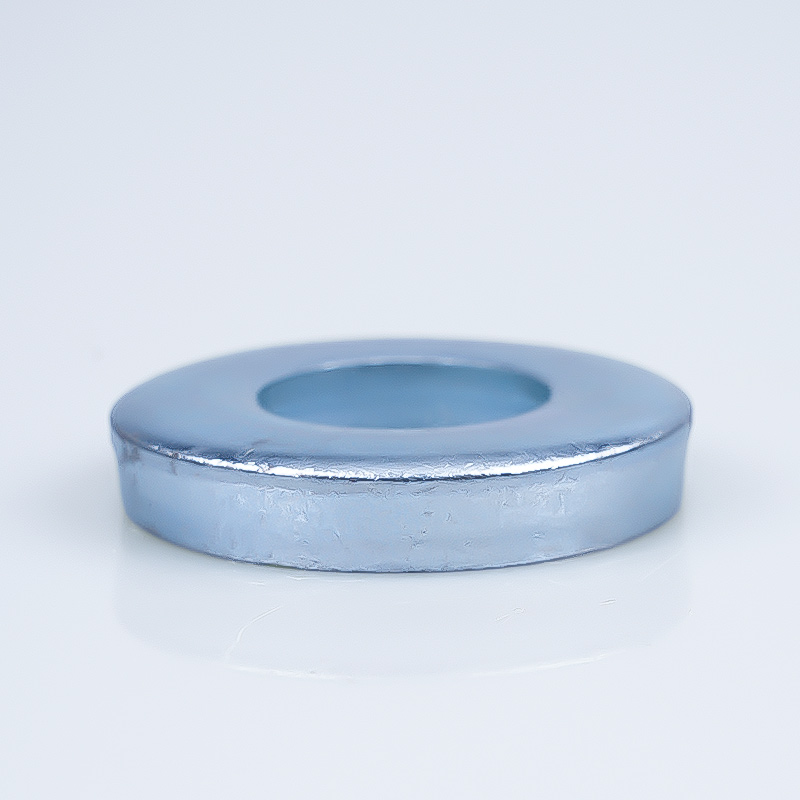

STANDARD : DIN 7349
SIZE : M2.5 TO M100
MATERIAL : CARBON STEEL
FINISH : ZINC PLATED, HDG, ZINC FLAKE
PACKAGING : BULK PACK | SMALL BOXED
• Conforms to DIN 7349
• Galvanised finish offers great resistance to corrosion
• Used with threaded fasteners (for example a bolt and a nut), designed to increase the load distribution
|
d |
3.2 |
4.3 |
5.3 |
6.4 |
8.4 |
10.5 |
13 |
15 |
||
|
dc |
9 |
12 |
15 |
17 |
21 |
25 |
30 |
36 |
||
|
h |
1 |
1.6 |
2 |
3 |
4 |
4 |
6 |
6 |
||
|
weight/tho(kg) |
0.436 |
1.24 |
2.43 |
4.59 |
9.15 |
12.7 |
27.1 |
39.6 |
||
|
Mating Bolt size |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
||
|
d |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
|
||
|
dc |
40 |
44 |
44 |
50 |
50 |
60 |
68 |
|
||
|
h |
6 |
8 |
8 |
8 |
10 |
10 |
10 |
|
||
|
weight/tho(kg) |
48.5 |
77.4 |
73.4 |
97.1 |
116 |
174 |
226 |
|
||
|
Mating Bolt size |
16 |
18 |
20 |
22 |
24 |
27 |
30 |
|
||
