STANDARD : DIN 933,ISO 4017, DIN 961, ISO 8676, DIN558SIZE : M3 - M52 LENGTH 6 - 200MMMATERIAL : CARBON STEEL, STAINLESS STEEL, BRASSGRADE : 4.8 5.8 6.8 8 10.9 12.9 A2-50 A2-70 A4-70 A4-80FINISH : SELF COLOUR ,ZINC PLATED, HDG,ZINC FLAKEPACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN985SIZE : M3 - M48MATERIAL : Carbon Steel,Stainless SteelGRADE : 6, 8, 10, A2, A4FINISH : PLAIN | BZP | Mechanical Galv | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED
STANDARD : DIN 934SIZE : M2.5 - M100MATERIAL : STEEL GRADE 8, 10, 12GRADE : 6, 8, 10, 12, A2, A4, BRASSFINISH : PLAIN | BZP | HDG | GEOMET ...PACKAGING : BULK PACK | SMALL BOXED

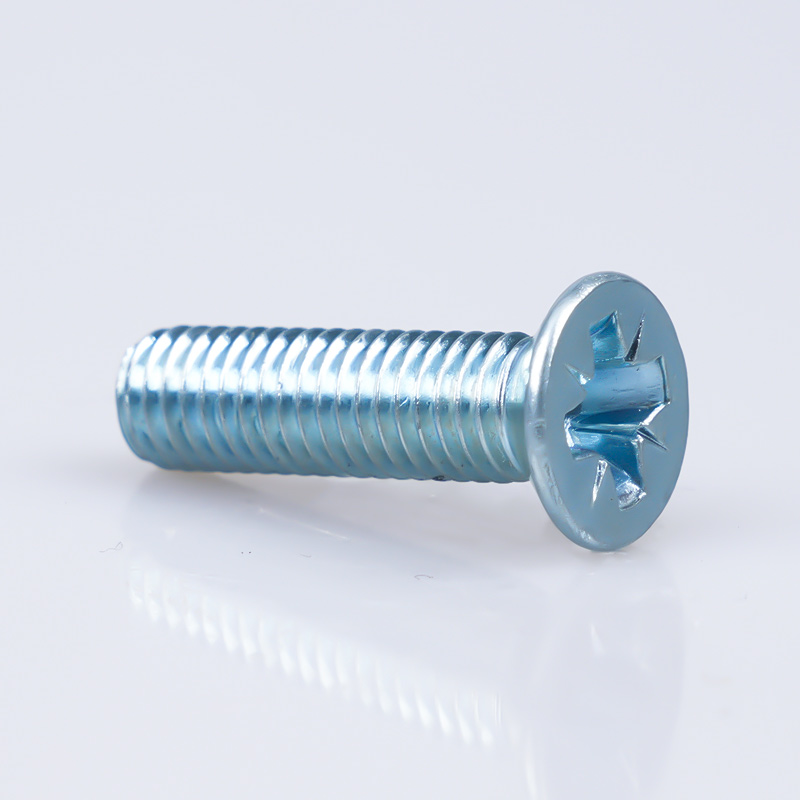

STANDARD : DIN 965,ISO 7046
SIZE : M1.6 TO M10,LENGTH 4 TO 100MM
MATERIAL : CARBON STEEL,STAINLESS STEEL,BRASS
GRADE : 4.8(CARBON STEEL)A2-50,A2-70,A4-50,A4-70(STAINLESS STEEL)
FINISH : SELF COLOUR,ZINC PLATED
PACKAGING : BULK PACK | SMALL BOXED
• To DIN 965,ISO 7046
• Material: Carbon Steel,Stainless Steel,Brass
• Grade:4.8(Carbon Steel) A2-50, A2-70, A4-70(Stainless Steel）
•Countersunk head gives a flush finish once in place
|
d 1 |
d2 max. |
k max. |
Recess No. |
|
M2.5 |
4.7 |
1.5 |
1 |
|
M 3 |
5.6 |
1.65 |
1 |
|
M3.5 |
6.5 |
1.93 |
2 |
|
M 4 |
7.5 |
2.2 |
2 |
|
M 5 |
9.2 |
2.5 |
2 |
|
M 6 |
11 |
3 |
3 |
|
M 8 |
14.5 |
4 |
4 |
